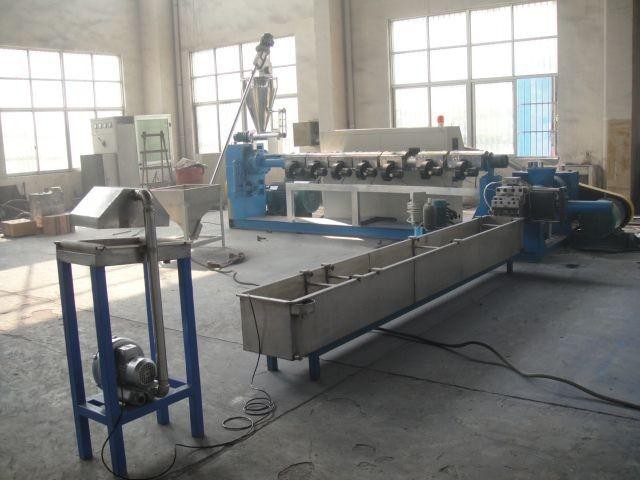

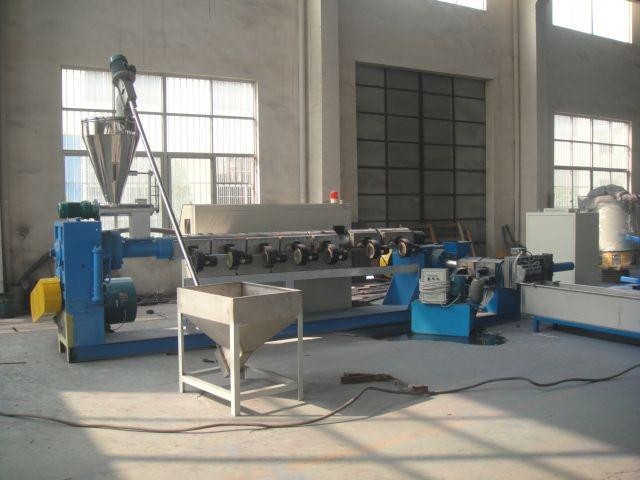

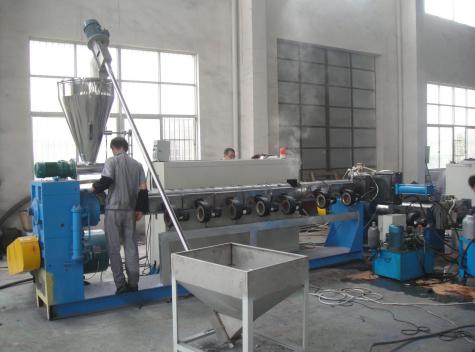

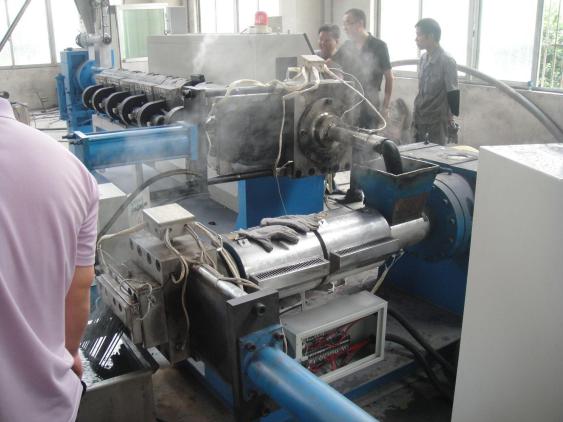

7.9 Two Stage Granulating Production Line
Price: $53,000
Detail






Two Stage Granulating Line

            (150KG/H)


A. Technical Parameter:

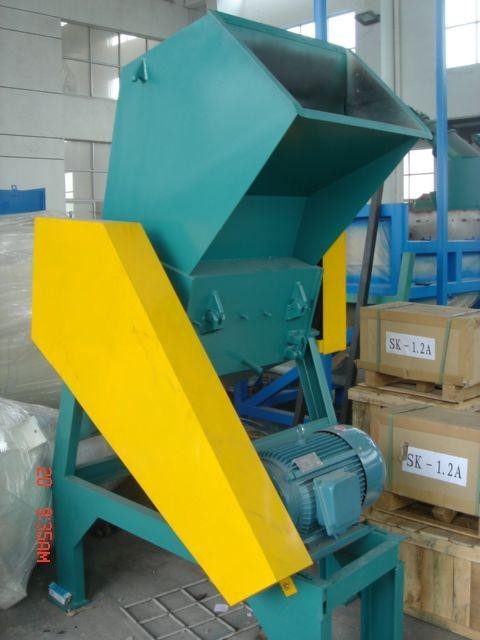

1.Crusher&Fee ding Machine


Motor power: 15kw


Feeding port: 650*450mm


Rotor diameter: Φ400mm


Fixed blade quantity: 4PCS


Rotate blade quantity: 6PCS


Material of blade: 9CrSi


Spindle speed: 500rpm


Diameter of mesh: 18mm


The advantage of crushing with water: rough remove sand at the first step.








Feeding Machine Power:1.5kw


2.Hopper


Diameter750mm Height1100mm Materialstainless steel Motor power:4kw

3.Extruder (CHE-120/28)


Model:CHE-120/28


Screw Diameter:120mm(with air outlet)


Screw barrel material38CrMoAlby nitriding treatment Length and diameter ratio28:1

Screw effective length3360mm





Maximum rotary speed76rpm


Motor power45KW variable frequency motorfrequency control Heating Power9KW×6

Wind cooling0.25kw×6


Hard tooth surface water cooling gear box

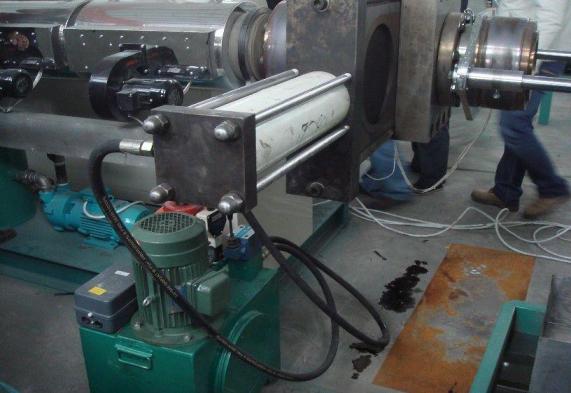

4.Hydraulic ring net device


Die head change nets equipment uses 40Cr, through the surface hardening treatment processing


Don't stop hydraulic change nets device Hydraulic pump power station : 2.2kw Filter diameter : 250mm

Die head heating power : 6kw

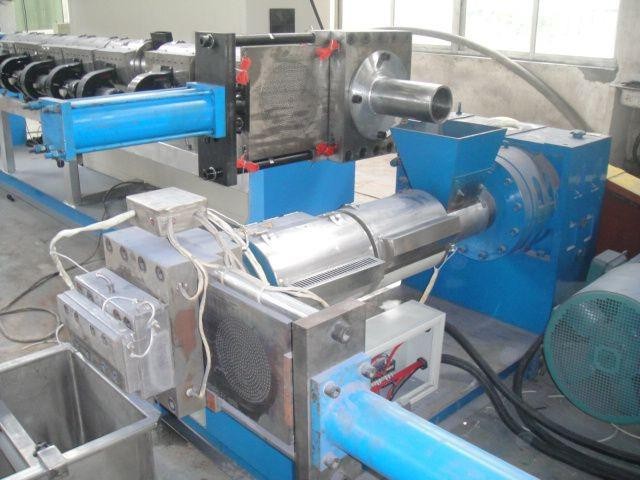

5.Extruder (CHE-100/10


ModelSJ100/10





Screw Diameter:100mm


Screw barrel material38CrMoAlby nitriding treatment Length and diameter ratio101

Screw effective length1000mm Maximum rotary speed ratio110r/min

Motor  Power 15KWvariable frequency  motorfrequency control

Heating Power6KW×3 Wind cooling0.25kw×3

Hard tooth surface water cooling gear box

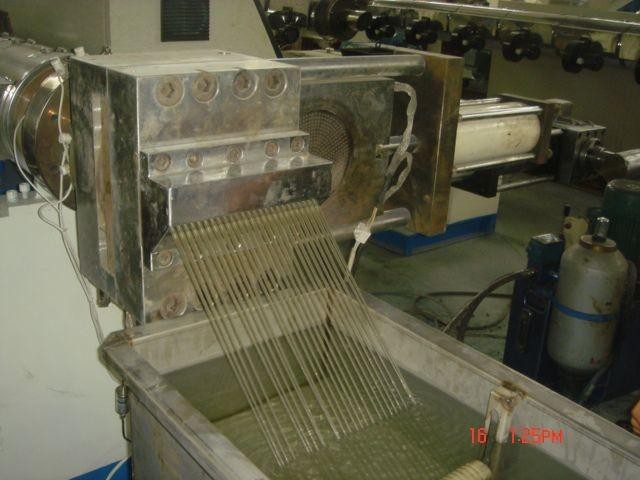

6.Die Head and Hydraulic ring net device


Die head change nets equipment uses 40Cr, through the surface hardening treatment processing


Don't stop hydraulic change nets device Die head heating power : 6kw

Filter diameter : 200mm


Discharge hole diameter: Φ4mm×11(Piece






7.Cooling water tank


Size4000*500*450 Made of stainless steel

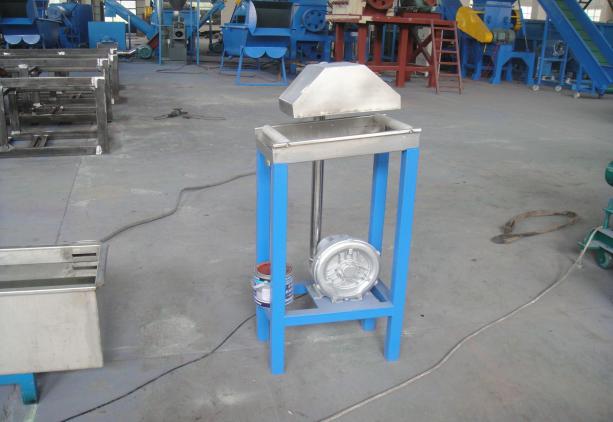

8.Blow dry fan


Motor Power0.7kw

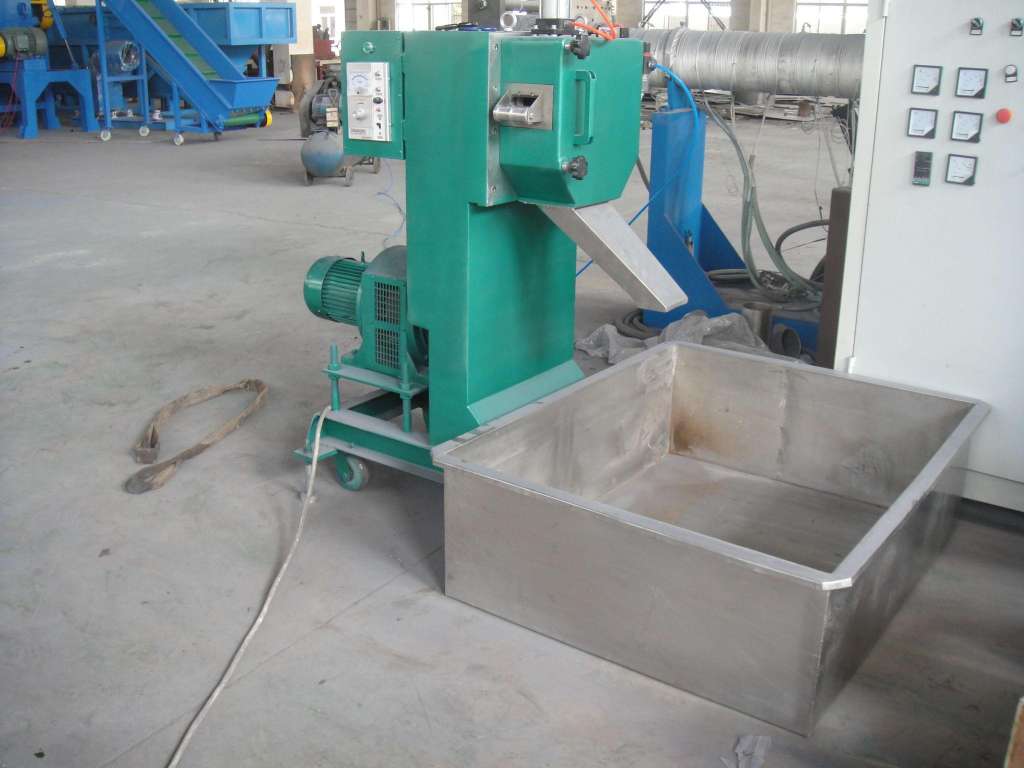

9.Pelletizers andstorage material pool

Motor Power4kwwith frequency controlStorage material pool volume500L





10.Electric Cabinet


SIEMENS A.C. Contactor


Japanese RKC Digital Temperature Control Instrumentation NS frequency converters


Change nets by pressure sensor tip, operation panel with safety emergency "stop" button,each machine work position on the panel.

Price

USD53,000 (FOB Shanghai)
