Product Detail
7.7 Blender Mixer
Price: $80,000
Detail



The Quotation For Blender Mixer



Conventional Equipment

Model Specification

Quality

Unit Price

USD

Total Price

USD

1

SHR-1000L High Speed Thermal Mixer

1 set


55,000


55,000

2

SHR-3000L Horizontal Cold Mixer

1 set



3

Hot Mixed Vacuum Loading and Storage System

1 set

10,000

10,000

4

SD-6000 Screw Feeder

2 sets

2,500

5,000

5

Discharge Storage Bin

2 sets

3,000

6,000

6

Electric Control Box

1 set

4,000

4,000


Total Price: 80,000 USD

包装运输费

FACTORY PRICE

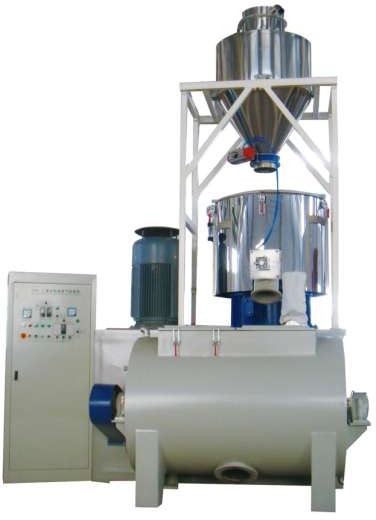

CME-W1000/3000 Horizontal High Speed Mixing Unit Configuration





Unit name: Horizontal High-speed mixing unit Type: CMC-W1000/3000


. Environmental condition

Location: indoor

Power supply: no danger zone


. Use condition

Power supply: 3 phase 380 v (- 10%, + 5%) 50 Hz

cooling water: ≤20℃,≥0.3Mpa

Compressed air: > 0.5 Mpa

Total power:190KW




. General rules

This unit is used for PVC resin and the formulation of mixing material

The main technical performance

1. The resin usedPVC


Unit model

The mixture material

Mixing time

CMC-1000/3000

PVC formula material

8~12 minutes




Equipment list



Equipment name

Quantity



CMC-1000L high speed hot mixer

1 set



CMC-3000L horizontal cold mixer

1 set






Vacuum feeding and storage system

1 set

SD-6000 spiral feeder

2 sets

Discharge storage silo

2 sets

Electrical control cabinet

1 set

Operation manual

1 piece

Certificate of conformity

1 piece




V Detailed technical parameters

CMC series mixing unit is mainly used in polyvinyl chloride resin (PVC) mixing and coloring, Polyethylene particles coloring and drying, the drying process before polycarbonate and other hygroscopic resins molding processing, mixing process of phonetic resin, etc. Then the cooling stirring cooling, to prevent caking, prevent degradation of hot mixing material, and makes the additives in the hot mixing material to keep penetrating to the plastic resineliminating residual gas in the hot mixing material, and can store the hot mixed material. With characteristics of fast cooling speed and uniform cooling which can meet the requirements of plastic production technology. It is one of the necessary equipments for plastics processing plants, is also widely used in rubber, pharmaceuticals, paints and other industries.

Container lid and the container using the ventricular double sealing mode, and compare to the traditional single channel type plane sealing, the sealing effect is better.

Heating mixer using the three-leaf blade or disk bladecan use according to the different products of customers, blades be the stainless steel castings and adopt dynamic balance processing, keep the stability of running. The bottom impeller using special treatment to effectively prevent the mixing machine material leakage phenomenonMixing machine spindle sleeve by quenching and tempering, greatly improving its service life, and effectively prevent leakage phenomenon. Discharging valves of the heating mixer using the plunger material gate block. The inner surface of gate plugging tight anatomizing with the inner wall of the container, there is no mixing dead area, the materials are mixed uniformly. The discharging way of cooling mixer using pneumatic butterfly valve, the butterfly valve anatomies with the inner wall of the container, seal performance is good and discharging speed is fast, and discharging cleanly. Material gate block using the end face conical seal method, sealed and reliable. Hot mixer and cooling mixer adopt aluminum pot lidopen method using the pneumatic driving. Cooling blade adopts large dip angle blade, forcing the material along the inner wall of the container to rise, increasing the contact surface of the material and the container wall through the cooling jacket for cooling down. Temperature measuring point is located in the container, directly contacted with the material, accurate temperature measurement.

Shaft seal is the material of imported three layer skeleton oil seal of durable rubber, and with the oiling device, good sealing effect, and long service life. Spindle made by 40CrZ, quenching and tempering hardness be HrC28-32.

The wall of the container is provided with a cooling layer, cooling interlayer using spiral channel, which makes the cooling water flow according to the preset route. Uniform cooling, quick cooling, and the cooling effect is good. The container is provided with an inverted truncated cone shaped inner cooling sleeve, increasing the cooling area, accelerate the cooling speed.

Cooling mixer imported advanced foreign technology on reducer and then adopts cycloid pin reducer, overcome all the disadvantages of using retarder, making it more stably operating. Cooling mixer cover is provided with an exhaust device, to vent the gas of heat mixed material in the cooling process, improve the quality of the products.

The main electric components are famous productsContactor and button products by Schneider IncAir switch, circuit breaker with Delixi company products, the temperature control element uses Omron Corporation products.

Starting way adopts frequency speed control, starting performance is stable, and can get a effective protection to the motor, it can set high-low speed starting in the frequency inverter, and also can set the time of delay start.


一、Vacuum feeding system

Vacuum feeder is widely used in plastic proceeding machinery as an auxiliary part, which is used to convey plastic powder and pellet into storage silo automatically. This whole process is completely closed while automatic control ensures on other kind material get inside. Raw material reaches 100% no pollution.

The feeding system mainly consists of vortex conveying air pump, conveying hose, pulse dust-remover system and electrical system, which is control by PLC program.


Main technical parameters

Vortex conveying air pump power: 11KW Bucket volume: 1000L

Dust removal method: by pulse (equipped with fabric bags) Conveyor hose: φ 76mm wire transparent hose

Air outlet pipeline: φ 100mm wire transparent hose Electrical part:PLC program.

Contactor: Schneider Air switch: Deluxe

Equipped with mounting bracket fixed on upper side of storage silo. Feeding distance: 5-10 meters

Silo size: 1500×1500×1700mm(made of stainless steel)


二、CMC-1000L High speed hot mixer technical parameters and configuration

The total volume: hot mixer 1000 L

Hot mixer effective volume: 750 L

Stirring blades: 4 (stainless steel casting)

Hot mixing blade speed: 340/680 rpm

Mixing time: 8-12 minutes

Hot mixer wall material: stainless steel, wall thickness: 8mm, 304 stainless steel

The lid and body material: cast aluminum

Hot mixed cover opening: Pneumatic

The discharge mode: plunger material door plugging, pneumatic

Discharge method: Pneumatic plug moving

Spindle sealing methods: skeleton type oil seal

Cover sealing: Double-channel high-temperature silicone rubber seal

Hot mix motor power: 132KW (DAZHONG)

Starting mode: Frequency control (ABB)

Heating method: self friction

Ventilation dust removing method: non-woven bags, height: 600mm

Exterior Size: 3100 x 2000 x 4000mm (containing bag height)


三、CMC-3000L Cooling mixing machine technical parameters and configuration

The total volume: cooling mixer 3000 L

The effective volume: cooling mixer 2250L

Stirring blades: cooling mixed group 4 (stainless steel casting)

Cooling mixing blade speed: 60 rpm

Mixing time: 8-12 minutes

Cooling mixer wall material: stainless steel, wall thickness: 8mm,304 stainless steel

The lid and the body material: stainless steel

The opening method of the cooling mixer cover: Manual

The discharging mode: butterfly valve material door plugging, pneumatic. Discharge mouth equipped with three ways.

Cooling mixer motor power: 30KW(Jiangsu Dashing)

Cooling mixer connection: cycloid pin reducer motor

Cooling mode: The inner wall of the container with water cooling

Ventilation dust removing method: non-woven bags, height: 900mm

Weight: 9500 KG

15. Size: 2700×2900×1500mm


Electrical control system

Contact: DELIXI

Air switch: DELIXI

Temperature control table: OMRON

Frequency Converter: ABB

Electric control box dimensions: 850 x 580 x 2100mm


四、CMC-600 spiral feeder

Spiral feeder is widely used in plastic proceeding machinery as an auxiliary part, which is used to convey plastic powder and pellet into storage silo automatically. This whole process is completely closed while automatic control ensures on other kind material get inside. Raw material reaches 100% no pollution.

Technical parameters

Size: CMC-600

Feeding motor power: 2.2KW Feeding tube diameter: φ 113 Feeding capacity: 3000kg/h Storage silo volume: 2 M3

Exterior size: 1500×1500×4000mm
