Product Detail

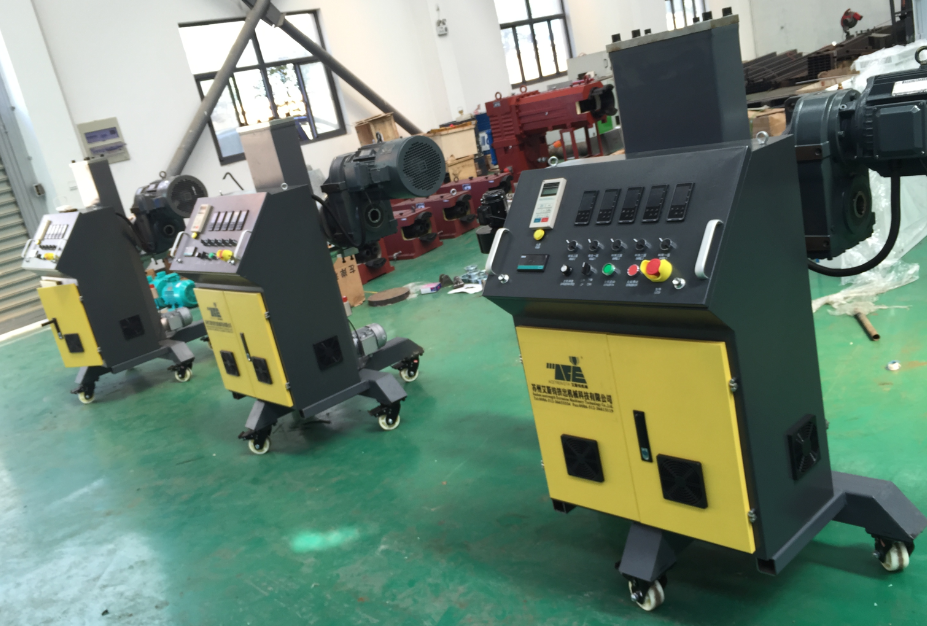

7.5 Co-Extrusion Single Screw Extruder
Price: $8,200
Detail

                                      Quotation list

                                  For

                               Co-extrusion SJ 35/25 single screw extruder



No.

configuration

Specification & explanation

1

Screw & barrel

Material 38CrMoALA, Screw Hardness 740-940, barrel hardness over 860

2

Screw Diameter.

35cm

3

Screw length/Diameter ratio

25:1

4

Main Motor Power

5.5kw

5

Heating power

Barrel 2kw 3zones,  Head 3kw 2 zones

6

Main electric parts

Temprature-controlled meter Omron K style themocouple; contactor CNT

7

Moving style

Motor drived

8

Large castors

4 DI ER Castors with brake

9

Safety protection

Lower limit elextrical control switch

10

hopper

304 stainless stell; thickness 1.5mm; capacity 25kg;with visible window

Total price:  8,200USD     FOB Shanghai


PAYMENT: T/T, 30% Deposit,70% would be paid before shipment.

Arrival Time: 30 days.
