7.4 Plastic Door and Window Process Machine
Price: $15,700
Detail









                              PLASTIC DOOR AND WINDOW PROCESS MACHINES



MACHINE


SPECIFICATION


QUOTATION


OTHER ITEMS




NO.

NAME

MODEL

CBM

Weightkgs

PriceUSD


1

Two-head Corner Welding

Machine

CHE-02-120*3500

8.23

1300.00

3200


2

DoubleHead

Machine

Cutting

CHE2-450*3700

9.27

1300.00

4485

3

“ V ” cutting saw

CHE-60

1.80

210.00

1200


4

Copy-routing

machine

drilling

CHE-290*100

1.84

280.00

2000

5

BenchSingle

Cleaning Machine

Comer

CHE06-120

1.00

100.00

1100

6

Two-Axle Auto Water Slot

Drilling Machine

CHE02-3*60

1.30

140.00

1300


7

End milling machine

CHE-200

0.81

300.00

1200


8

Glazing Bead Saw

CHE03-1800

1.80

210.00

1200


9

Portable hand tool for corner

cleaning

CHE-120

0.02

4.80

90


Total

26.07

3844.8

15,700USD




Delivery time: 10 days after receipt the down payment

Payment: 30% down payment, 70% would be done when ready to ship Guarantee: 12 months (by means of replace parts)









Details:


Two-head Welding Machine

Main features

1). The window machine is used for PVC door-window welding. 2). PLC controls the welding action program, high reliability. 3). Machine heads can work separately or jointly.

Free angle welding of right machine head.

Parameters can be set to meet various profiles' processing requirements. 6). High welding precision.

Imported PLC and other main electric components.

One of the heads can weld various angles, which can meet the customers need of welding an arc and other special-shaped windows. Good welding corner appearance.

Technical Parameters


Model

SHJ02-120*3500

Power voltage

380V 50HZ




Input power

2.5KW


Air pressure

0.4~0.6MPa


Air consumption

100L/min


Welding range

400mm-1500mm


Welding profile height

20mm~100mm


Welding profile width

0-120mm


Welding angle range

30°~180°(max welding joints size 90mm)


Overall dimension

4400mm×1100mm×1700mm


Weight

1300kg

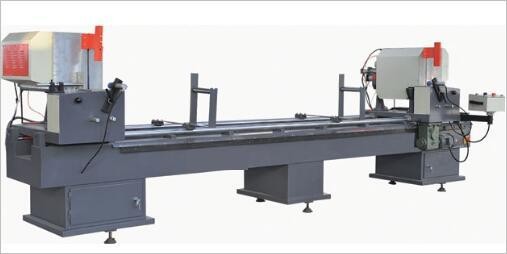

Double Head Cutting Machine CHE-2-450×3700 Main Feature :

Use special high-grade aluminum alloy cutting blades, for insulation and high precision machining of aluminum alloy doors and windows, efficient, cutting its size and precision accuracy to reach national standards.

The machine’s head can move and adopt cylindrical guide to ensure the quality and stability of the parallel degree.

The two saws can work both and also single at the same time

4).The saw blade spindle adopt high-precision spindle axis, impact resistance, long life. 5). To be completed within 45 ° outside the 45 ° 90 ° angle of the cutting.

Main Technique Parameter:



Power supply

380V 50Hz or Customer specification

Main motor power:

Power 2 × 1.5KW 1 × 0.55KW

Input power

3.55kw

Air pressure

0.4-0 .6 M pa

Air consumption

200L /min

Main motor rotation speed:

2840rpm.




Max/min Cutting length

450-3700mm


Saw blade dimension:

φ450× φ30


Cutting angle:

-45 ° 90 ° 45 °


Cutting W x H

120x200 mm


Repeat locating length

≤0.2mm


Angle cutting tolerance

±5′


Plane of cutting surface

≤0.10


Cutting profile surface

roughness


Ra12.5um


Size: (width × high × long)

4600mm × 1300mm × 1550mm


Weight:

1300Kg



 Many Accessory


Electrical Button and Switcher

Schneider

AC Contactor and Circuit Breaker

Schneider

Motor

Anhui

Solenoid valve

STNC

Approach Switcher

Huibang

Cylinder

JPC

Air Filter Device

STNC

Saw blade

Japan wagen

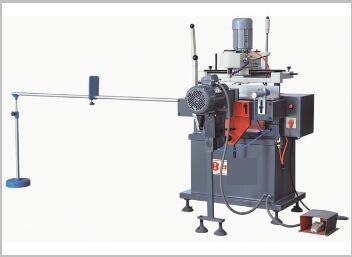

Copy Milling Machine CHE-3F-290*100 Main features

1). Used for processing various kinds of holes of aluminum doors & windows, such as water slot, pulley hole, lock hole and groove of PVC and Aluminum profile.


Horizontal milling head and vertical three-hole drill can process three holes on the lock and lock-position hole at one time.

Special A-alloy milling cutter with long using life ensures high quality processing.

Technical Parameters



Model

LZ3F-290*100

Power Supply

380V 50Hzor Customer specification

Input Power

2.25KW

Over all dimension

1000*1150*1600mm

Weight

280Kg

Air Pressure

0.5-0.8MPa

Processing hole size error

±0.2mm

Processing deviation from straightness

±0.1mm

Diameter of the three-hole drilling head

Φ12

Centers distance of three-hole drilling head

21.5*21.5

Milling cutter diameter

Φ5, Φ8

Copy routing range

290*100

Roughness of cutting surface

Ra 12.5 µm


Many Accessory


Electrical Button and Switcher

Schneider

AC Contactor and Circuit Breaker

Schneider

Motor

Anhui

Solenoid valve

STNC

Approach Switcher

Huibang

Cylinder

JPC

Air Filter Device

STNC

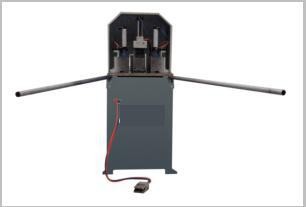

Bench Single Comer Cleaning Machine

Used for cleaning welding tumor

Complete one-pass simultaneously cleaning top, bottom and vertical surface outer corner tumor Clean welding profiles with different sections by changing different cutter

PLC control, pneumatic transmission

Suitable for different levels profiles with floating cuter-pulling devices Simple structure, simple operation and high process precision



Power supply

380V 50Hz

Air pressure

0.4~0.6(Mpa)

Air consumption

150L /min

Process height

35~120(mm)

Process width

20~120(mm)

Weight

100kg

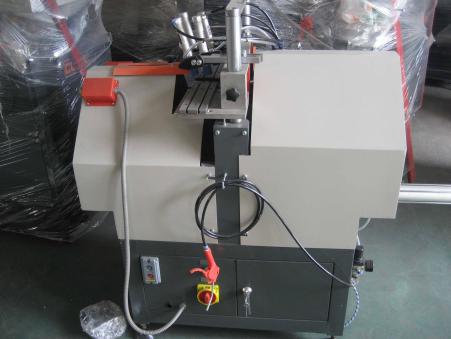

End-milling machine Main features

1). Special for the mullion, step surface and end groove process 2). High-precision main shaft

Automatic feeding.

Working table can been adjusted in vertical direction by a hand wheel 5). Vertical and horizontal positioning & clamping system

Technical Parameters



Brand name

Chinastar

Model

LXD--200

Power voltage:

380V 50Hz

Main motor power

1.5kw




Saw cutting (w*h)

45mm*90mm


Saw blade dimension

Ø100~Ø200*Ø32


Main motor rotation speed

2840r/min


Planeness of cutting surface

≤0.10mm


Cutting profile surface roughness

Ra12.5μm


Overall dimmension(L*W*H)

850mm*740mm*1280mm


Weight

300kg

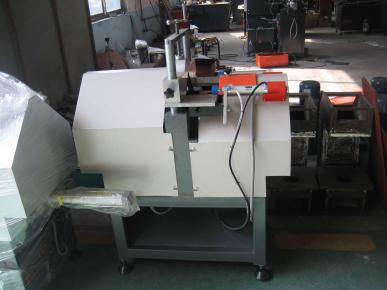

Glazing Bead Cutting Saw CHE-03-1800

Specialized in cutting all kinds of glazling bead.

Trimming device makes it possible to cut profiles at scale and adjust tightness of glazing bead after installing according to requirements.

Simple clamping, smooth and hi-precision cutting.


Power supply

380V 50Hz or Customer specification

Air pressure

0.4~0.6(Mpa)

Input power

2*0.75kw

Process range

300~1800(mm)

Overall dimension

1350 × 500 × 1350(mm)

Weight

210kg


Many Accessory


Electrical Button and Switcher

Schneider

AC Contactor and Circuit Breaker

Schneider




Motor

Anhui


Solenoid valve

STNC


Approach Switcher

Huibang


Cylinder

JPC


Air Filter Device

STNC


Saw blade

WEMARO


Linear bearing system

C&U

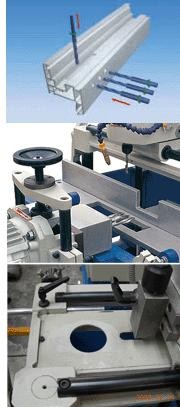

Two-Axle Auto Water Slot Drilling Machine

The machine is easy to operate and maintain, has reliable performance and high efficiency. It can complete all the water slots and air holes with high efficiency. The machine is mainly used of machining water slots of plastic window and door in mass production.



Milling length

30mm


Knife

Φ 5mm


Milling depth

40mm


Overall dimension

2100 × 860 × 1500mm


Weight

140kg



Many Accessory


Electrical Button and Switcher

Schneider

AC Contactor and Circuit Breaker

Schneider

Motor

Anhui

Solenoid valve

STNC

Approach Switcher

Huibang

Cylinder

JPC

Air Filter Device

STNC

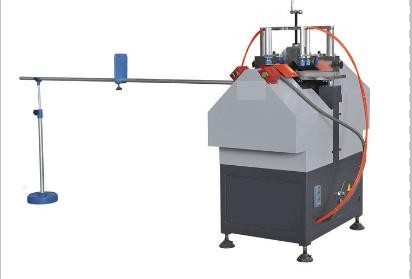

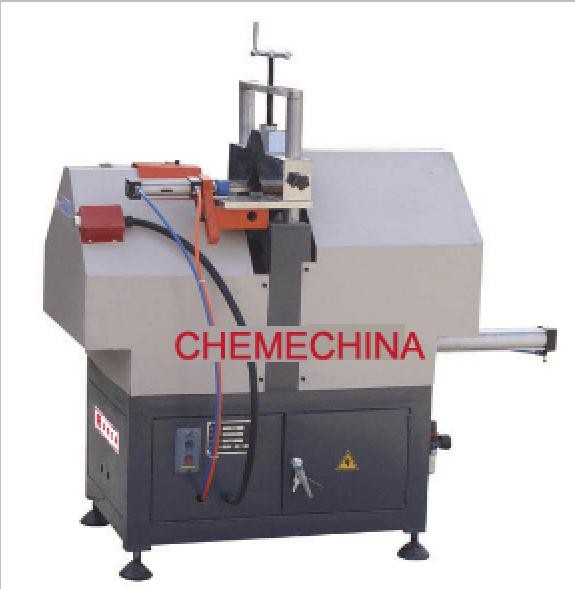

9. “ V ” cutting saw Main feature

The machine applies to 90 v groove cutting for aluminum and plastic profiled bar which is clamped and cut by pneumatic drive

it has characteristics of simple operation , high safety, exact cutting dimension, and convenient maintenance.

Technical Parameter:



Input power

0.75*2KW


Air pressure

0.4~0.6MPa


Air consumption

80L/min


Main motor rotation speed

2800r/min


Saw cutting width

120mm


Cutting length

300-1600mm


Cutting groove depth

20-60mm


Overall dimension

1900mm×700mm×1350mm


Weight

210kg



Many Accessory


Electrical Button and Switcher

Schneider

AC Contactor and Circuit Breaker

Schneider

Motor

Auhui

Solenoid valve

STNC

Approach Switcher

Huibang

Cylinder

JPC

Air Filter Device

STNC

Saw blade

WEMARO
