T-SHAPE PE LAMINATION DRAINAGE SHEET PRODUCTION LINE
Flow
chart Equipment
After-sale service
Testing standard
Quotation
100-150KG/H CAPACITY

China Chemical Machinery International Co.,Ltd
Add. 5-6-4 Rongtai St. ZS. Dis. Dalian China www.chemechintl.com T:+ 86 15904139551
M: +86 13889441185 sales@chemechintl.com

Flow Chart
Equipment
Automatic loader
Loading capacity:250kg/h
Motor power:1.5kW/380V, 3-phase
Loading height:3.2m

China Chemical Machinery International Co.,Ltd
Add. 5-6-4 Rongtai St. ZS. Dis. Dalian China www.chemechintl.com T:+ 86 15904139551
M: +86 13889441185 sales@chemechintl.com
Φ120 extruder
Screw diameter:120 mm
L/D:30:1
Main motor power:110kW, DC motor to adjust speed, ABB or ETD speed regulator
Heating power:67.5kW
Temperature control:RKC temperature controller Screw and barrel cooling method:fan cooling
Heating:7 zones
Extrusion capacity:150~200kg/h
Heat induction method:thermal resistance
Heater:cast aluminum heater
Material of screw and barrel:38CrMoAl nitride treatment
Screen changer
Mould
It adopts coat hanger structure, equipped with damp adjusting channel, can be adjusted at the outlet of mould. It adopts special mould steel, inside heater, 7 sections temperature control, RKC temperature controller.
Width:2~2.6m
Forming device
It consists of forming roll and multi-roll, continuous forming. The thickness of base film can be adjusted in 0.4~1mm. The forming temperature can be controlled, multi-roll adopt independent transmission and link control. It adopts frequency conversion motor direct-coupled decelerator, equipped with FUJI or other import brand inverter.
Mould thermostat
Equipped with two groups independent heating and cooling system, constant temperature and automatic control system.
Heating power:18kW
Conveying motor power:2.2~3kW

China Chemical Machinery International Co.,Ltd
Add. 5-6-4 Rongtai St. ZS. Dis. Dalian China www.chemechintl.com T:+ 86 15904139551
M: +86 13889441185 sales@chemechintl.com

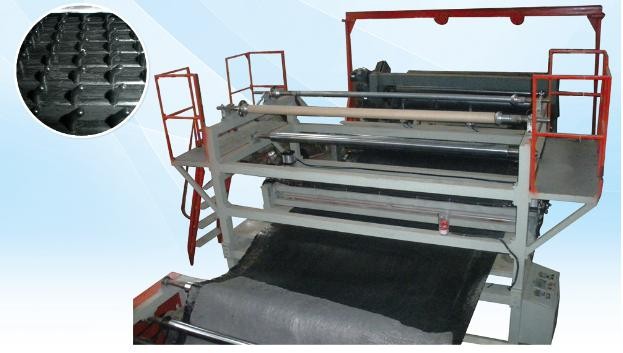

Laminating, haul-off & edge trimming device
It adopts electric heating to laminate, multi-heater, quick heating, double-roll press, frequency conversion motor to drive roll, import brand inverter, double-roll haul-off, fixed cutter for edge trimming. Two work position non-woven cloth unwinding device on the top of lamination device, equipped with constant tension device.
Fixed length cutting device
It adopts pneumatic transverse push, electromotive cutter, transverse cutter, automatic control, fixed length cutting.
Automatic constant tension winder
It adopts constant moment automatic winding, centre winding, pneumatic up roll, no core. Width:2.6m
Flat film on both sides:200mm
Flat film on both ends:250~300mm Max. diameter:1200mm
After-sale service
The guarantee period is 1 year and service is available lifelong. The cost caused by the seller’s expert in customer’s country (including shuttle trip ticket between China and the Buyer’s, inland traffic, medical fees, lodging, dinner and so on) and the cost of the materials of the components will be covered by the buyer, but during guarantee period, the cost of the components will be covered by the seller.
Under the right operation way, the quantities screw and barrel is for 10000 working hours.
The seller can send enough technicians to the Buyer’s company for installation and testing the lines.
List of the spare parts (Please see the list of spare parts)
Testing standard
The acceptance standard of the good is fully accorded to the Company Standard of China Chemical Machinery International Co.,Ltd
The Seller supplies operation manual for main extruder and accessory equipment and the principle drawings for the electric components.

China Chemical Machinery International Co.,Ltd
Add. 5-6-4 Rongtai St. ZS. Dis. Dalian China www.chemechintl.com T:+ 86 15904139551 M: +86 13889441185 sales@chemechintl.com
CHEMECHINA
China Chemical Machinery International Co.,Ltd
Quotation
USD255,200.00,FOB Dalian (Sea port in north of China)
Delivery time:days from the receipt of down payment.
Payment: 30% down payment by T/T, 70% before shipping by T/T
Start-up:included Warranty:one year Offer Valid: 30days Offer Date:
