Quotation list of PVC edge band extrusion line
No. | Description | Quantity | Unit price | Price |
1 | Highspeedmixingunit | 1 set | 9 000USD | 9 000USD |
| SRL-Z200/500 |
|
|
|
2 | SJSZ-51/105PVChotcutting | 1 set | 20000USD | 20000USD |
| pelletizing line |
|
|
|
3 | SJ-65/25 YF-180 PVC edge band |
| 20000USD | 20000USD |
| extrusion line |
|
|
|
4 | Edge band dies, 20*1mm | 1 set | 2000USD | 2000USD |
| Edge band dies, 20*2mm | 1 set | 2000USD | 2000USD |
5 | YBM2240 double color printing line | 1 line | 30000USD | 30000USD |
Total( FOB Qingdao Port, China): 83000USD
High speed mixing unit SRL-Z200/500, 1 set
Item | Description | Unit | SRL-Z200/500 |
1 | Max. Volume | L | 200/500 |
2 | Available Volume | L | 150/320 |
3 | Vane Speed | rev/min | 475/950/110 |
4 | MotorandHeating Capacity | Kw | 30/42/11 |
5 | Water Consuming | t/h | 5 (cooling) |
6 | Gas Consuming | M3/h | 0.4 |
7 | Heating Mode |
| ElectricHeating/ Self-attrition Heating |
8 | MaterialDischarge Mode |
| Manually/ Pneumatically |
9 | Figure Dimension | mm | 4580×2240×2470 |
10 | Weight | Kg | 3500 |
11 | Mixing Time and cooling time | min/ once charge | 8-10 |
SJSZ-51/105 PVC hot-cutting pelletizing line, 1 line
Spring feeding machine ( charger ) type SJF-700
Item | Description | Unit | ZJF-700 |
1 | Feeding Capacity | Kg/h | Max.1000 |
2 | Container Volume | Kg | 150 |
3 | Spring Diameter | mm | φ59 |
4 | Feeding Tube and Spring Length | mm | 3-5 |
5 | Material Trunk Volume | Kg | 200 |
6 | Electric Power |
| 3-380V50Hz |
7 | Main Motor Power | Kw | 2.75 |
8 | Dimensions | mm | 950×950×960 Φ820×1550 |
9 | Total Weight | Kg | 250 |
Double-Screw Extruder type GSDZ51/105
Item | Description | Unit | SJSZ51/105 |
1 | Output Capacity | Kg/h | Max.130 |
2 | Number of the Screws |
| 2 |
3 | Diameter of the Screw | mm | 51/105 |
4 | Rotating Direction of the Screws |
| Forth & Reverse |
5 | Rotation Speed of the Screw | r/min | 1-34.7 |
6 | Available Working Length of the Screws | mm | 1020 |
7 | Main Motor Power | Kw | 18.5 |
8 | Speed Adjusting Mode |
| frequency conversion adjustable, Invertor from ABB |
9 | Gear reducer |
| Rigid-gear surface low noise design |
10 | Heating Capacity of the Screw barrel | Kw | 15 ( casting-aluminium electric-thermal elements ) |
11 | Material of the Screwsand the barrel |
| 38CrMoAl, bimetallic |
12 | Nitriding Depth of the Screws and the barrel | mm | 0.5~0.7 |
13 | Nitriding rigidity of the Screws and the barrel | HRC | 50~55 |
14 | Cooling Mode of the Screw barrel |
| by air cooling |
16 | Indicators |
| Temperature indication by gauge |
17 | Temperature controllor |
| Brand: OMRON, Japan |
18 | Element of Electric System ( contactors, buttons, switches ) |
| Brand:Schneider |
19 | Power of the Vacuum Pump | Kw | 1.5 |
20 | Max. Vacuum Degree | MPa | -0.093 |
21 | Cooling Water Consumption | L/min | 1~3 |
22 | Plastic Material Feeding Mode |
| By Fixed-quantity Screw Feeding Device |
23 | Rotation Speed of the Feeding Screw | R/min | 3.5~47 ( frequency conversion ) |
24 | Height of the Screw Axes | mm | 1000 |
25 | Figure Dimensions ( L×W×H ) | mm | 4135×1320×2150 |
26 | Weight | Kg | 3000 |
Pelletizing Machine1 set
Item | Description | Data |
1 | Motor Power | 1.1 kw |
2 | Speed Adjustment | Converter Adjustment |
3 | Moulds Materials | 45# Steel |
4 | Pelletizing Knife Structure | One Rotating Knife with Multi Blades |

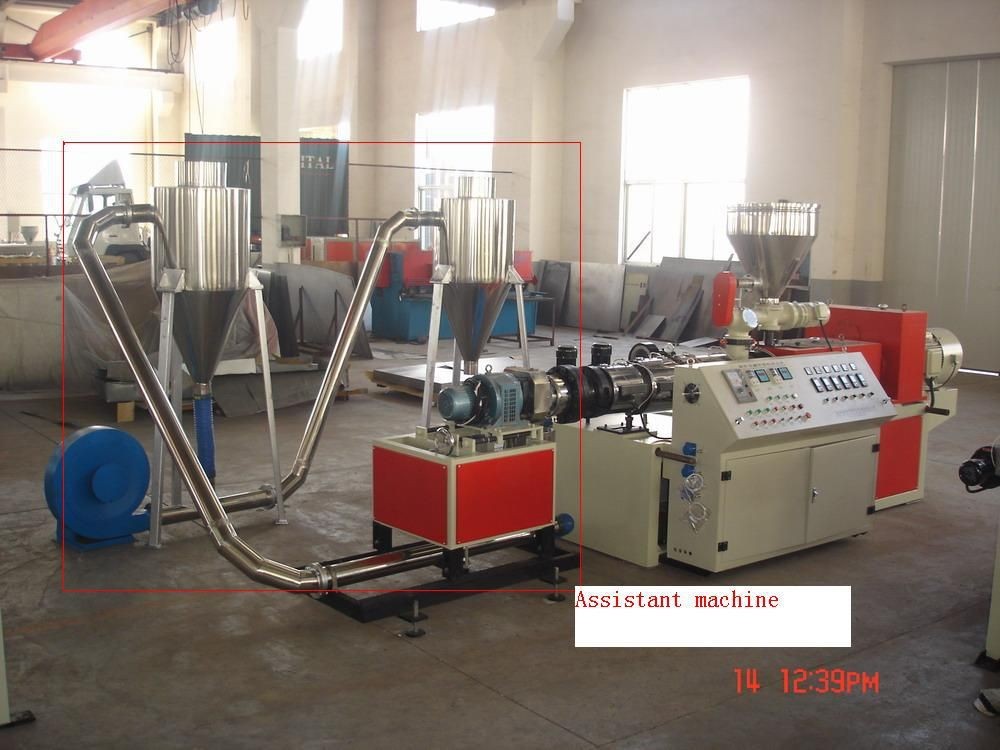

Air Blowing Transport Device1 set
Item | Description | Data |
1 | Motor Power | 4 kw |
2 | Materials | Stainless Steel |
Storage Silo1 set
Item | Description | Data |
1 | Silo Volume | 1 m3 |
2 | Materials | Stainless Steel |
3 | Discharging Mode | Manual |
SDFJ65/25 YF-180 PVC edge band extrusion line
Vacuum material loading machine and drying cooper, 1 set
Single screw extruder SJ-65/25
Item | Description | Unit | SFTJ-65/25 |
1 | Output Capacity | Kg/h | 40-60 |
2 | Number of the Screws |
| 1 |
3 | Diameter of the Screw | Mm | 65, LD=25:1 |
5 | Main Motor Power | Kw | 11 |
6 | Speed Adjusting Mode |
| Frequency conversion ABB |
7 | Gear reducer |
| Rigid-gear surface low noise design |
8 | Heating Capacity of the Screw barrel | Kw | 10 ( casting-aluminium electric-thermal elements ) |
9 | Material of the Screwsand the barrel |
| 38CrMoA1 |
10 | Nitriding Depth of the Screws and the barrel | Mm | 0.5~0.7 |
11 | Nitriding rigidity of the Screws and the barrel | HRC | 50~55 |
12 | Cooling Mode of the Screw barrel |
| by air cooling |
14 | Temperature controllor |
| Brand: OMRON, Japan |
15 | Element of Electric System ( contactors, buttons, switches ) |
| Brand:Seimens |
17 | Height of the Screw Axes | mm | 1000 |
18 | Figure Dimensions ( L×W×H ) | mm | 2590×1000×1500 |
19 | Weight | Kg | 1000 |
3.3 Vacuum Calibration Table
Item | Description | Unit |
|
1 | Length of the Table | mm | 2000 |
2 | Material of the Tank |
| Stainless Steel |
3 | Vacuum Pump Power | Kw | 1.5 |
4 | Water Pump Power | Kw | 1.1 |
5 | Up-down Adjusting Range | mm | ±40 |
6 | Left-right Adjusting Range | mm | ±40 |
7 | Axes Line Height | mm | 1000 |
3.4. Haulling-off Machine roller model
Item | Description | Unit |
|
1 | Hauling Motor Power | Kw | 1.5 |
2 | Hauling Moving Speed | m/min | 2-15 m/min |
3 | Speed Adjustment |
| Frequency Conversion Brand Japan ABB |
4 | Axes Height | mm | 1000 |
5 | Element of Electric System |
| From SIEMENS |
3.5 Glue spreader, 1 set
3.6.Embossing Machine
Item | Description | Unit |
|
1 | Manner of Polishing |
| Roller Style |
2 | Motor Power | Kw | 1.5 |
3.7Double station winder
Item | Description | Unit |
|
1 | Working method |
| Pneumatic |

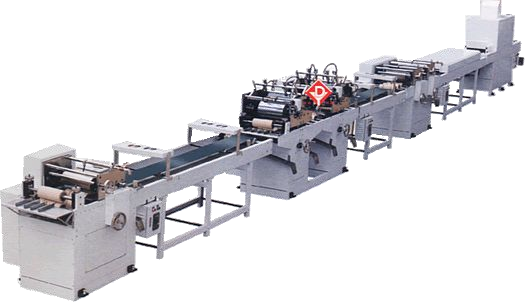

YHGBM2240 double color printing line
Technical data:
Printing width | Max. 240mm |
Printing speed | 0-30m/min(adjustable) |
Printing thickness | 1-50mm |
Quantity of printing color | 2 colors |
Driving motor power | 0.75kw/each group |
UV power | 6kw |
Dimension （Length×Width×Height） |
6000×1000×1600mm |
PARTIIPAYMENT, DELIVERY AND ORTHERS
Payments terms: 40% prepayment by T/T after signing of sales contract and 60% by T/T after accepting in the SELLER’s factory.
Delivery time: 40 working days
Guarantee time: within 12 months after starting.
Acceptance of total line: The SELLER will inform the BUYER to send
inspectorstotheSELLER’sfactoryfortrainingand accepting machinery.
Installation and starting: The SELLER can send 1 engineer to the BUYER’s factory to install the machinery, and train the workers if need. The buyer should bear the cost of airtickets, hotel and food, and 80 USD for each engineer.
Transporting method: by 2 40-f container by sea from Qingdao port, China. Technical documents: instruction book, electrical drawings, in English.
